Make Your Own Dinghy Wheels

Posted by David Liscio at 05:32PM - Comments: (4)

photos by David Liscio
photos by David Liscio

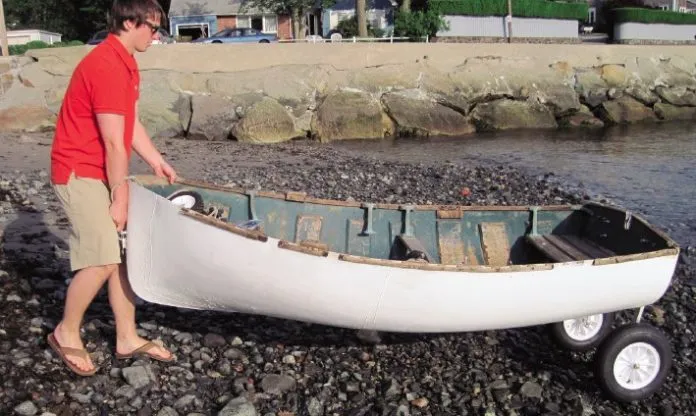

The best dinghy wheels in our test were surprisingly light and had no trouble on rocky terrain.

As refit projects keep us busy in the boatyard, we find ourselves rifling through back issues looking for buried do-it-yourself gems. This week's blast from the past is a real back saver. It describes how to turn some scrap plywood, a few screws, and a lawnmower axle and wheel set into durable and inexpensive portable dinghy wheels. If rocky terrain is in your future, you might want to commit to our top pick for bolt-on dinghy wheels from Danard Marine. Subscribers have free online access to a full report of our test of dinghy wheels, which includes less expensive options.

PS contributor David Liscio built this homemade dinghy roller over 10 years ago, and it still stands up to regular service.

Total material cost: $25

For the do-it-yourself dinghy wheels, here's what you’ll need:

• One pair of lawn mower wheels, 8-inch diameter with axle, washers, and wheel caps. ($10 or less)

• One pair of metal brackets to fasten axle to bottom of wood panel. ($3)

• 24 inches of rope, roughly a half-inch diameter; most any kind will do. ($1)

• Wood glue. ($2)

• One-quarter sheet of ¾-inch plywood. Marine grade is best but not a must. (lumber yard surplus, $5)

• A dozen self-tapping stainless screws, 2-inch length. ($2)

1. Cut two panels of wood, one 14-by-11.5 inches, the other 14-by-9 inches. Also cut three spacers, 14-by-9 inches each.

2. Glue and screw one of the spacers to the larger of the two wood panels, making an L-shape. The screws should be started into the wood panel and enter the spacer.

3. Glue and screw the second smaller wood panel, only this time, start the screws into the spacer, and then enter the wood panel. You should end up with what looks like a U-shape, with one wood panel slightly shorter than the other.

4. Screw the two axle brackets into place on the bottom spacer and fit the axle and wheels. Take one of the two remaining spacers, and glue and screw it directly onto the spacer already in place.

5. Then slip the entire device onto the transom of your dinghy to take a quick measurement. The wheels must not rub against the gunwale on the transom. To ensure clearance, screw the third spacer into place inside the U at a point that stops the transom from going any deeper.

6. Drill two holes into the larger (outside) wood panel for the rope. Tie knots in both ends of the rope. This will provide a carrying handle and an easy way to slip the device onto the transom, if the dinghy is stored in a rack or the back of your SUV. As you pull the dinghy from the rack, hold the device in place using the rope handle and slowly set down the dinghy.

Comments (4)

The design does not allow for moving the dinghy when it is bottom side down as shown in the photo of the man moving the dinghy. IMO the most needed time for wheels is when you must move it up a beach after a landing with the engine in place. Your design does not allow this.

Posted by: mlibkind | June 16, 2018 5:07 PM    Report this comment

If it's a sailing dinghy, make your wheeler like mine and use one piece of plywood with holes that fit over the gudgeons. Drop a bolt into each gudgeon to hold it in place. It can be set up to attach to the dink either side up.

Also, if you'll be crossing soft sand, make it a "duelly" with a long rod for an axle and two inexpensive wheels on each end.

Posted by: RDB | December 19, 2017 2:03 PM    Report this comment

I built a little 4-wheel truck with a central 'blade' that fits into the daggerboard trunk of my Fatty Knees dinghy. This takes ALL of the dinghy weight, requires no clamping or fastening of any kind, and gets lots of attention at the marina. I don't remember where I got the idea in the early 80s. Dan Spurr's book?

Posted by: Optoeng | August 17, 2017 12:46 PM    Report this comment

I purchased one many years ago, probably from a catalog. I cannot remember the supplier. I consider it one of my most useful possessions.

Posted by: Marty225 | August 17, 2017 10:54 AM    Report this comment
