Taking Our Test Anchors Out for a Wiggle-walk

4

First, we established baseline holding capacities for the 2-pound anchors by pull testing each anchor after letting it settle into the bottom for 10 minutes and setting with a steady pull.  These matched several rounds of prior test data in the same area. We then walked them back and forth through 30, 60, and 120 degree arcs every two minutes, maintaining reasonably even tension. We pulled just hard enough to make the anchor rotate, never exceeding the setting force. After 6 cycles, we recorded the force required to make the anchor rotate and walk forward. All testing, including on-boat testing was done using a 15:1 scope to eliminate lift as a variable. 2-pound anchor testing was done with no chain and on-boat testing was done with 15 feet of chain.

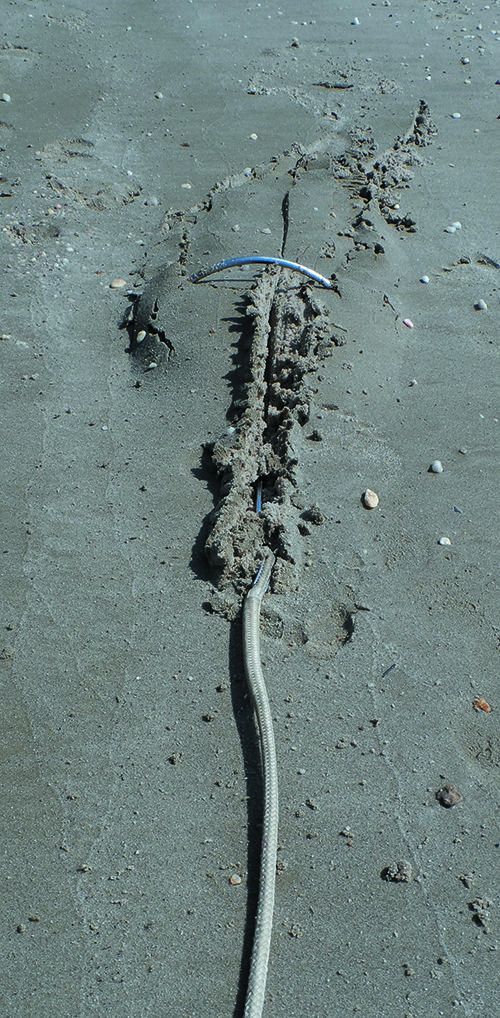

  1. In a straight line, the Mantus anchor digs straight and deep into the soft sand bottom.Taking Our Test Anchors Out for a Wiggle-walk
  2. As the direction of pull changes the anchor shuffles and the anchor stays near the surface. With every yaw cycle the anchor moves forward a fluke-length, slowly walking downwind towards potential trouble.Taking Our Test Anchors Out for a Wiggle-walk
  3. In a straight line, the Fortress Guardian anchor digs straight and deep.Taking Our Test Anchors Out for a Wiggle-walk

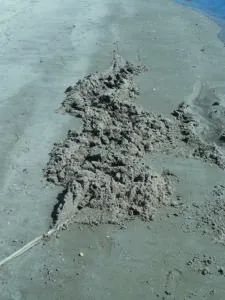

  4. The Guardian anchor takes longer to reset after each “shuffle” in a new direction.Taking Our Test Anchors Out for a Wiggle-walk

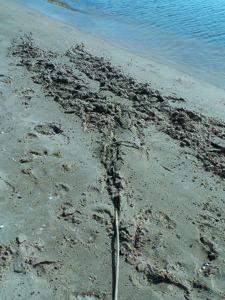

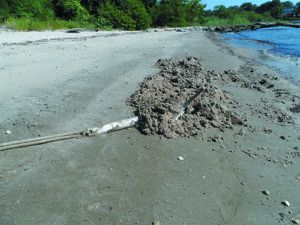

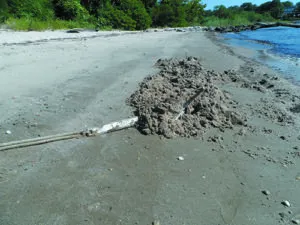

  5. In moderate winds with a steady pull the Guardian resets well, but if the strain is to light or the bottom is too hard, it can break out of the bottom.Taking Our Test Anchors Out for a Wiggle-walk

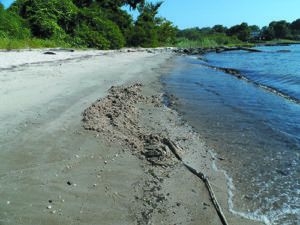

  6. If the anchor becomes partially disengaged it may never reset (notice the long drag mark).Taking Our Test Anchors Out for a Wiggle-walk

Related posts: Yawing and Anchor Holding

Deep Anchors Stay Put in Moderate Yawing
