Ultra Fairleads and Soft Padeyes


If a line does not approach a cam cleat close to level, the line may slip out or be hard to cleat or release. If a line approaches a winch too low, there is excessive friction, and if too high, the resulting overrides can be simply annoying or hard to release and downright dangerous. A fairlead corrects the angle.

Fairleads range from a simple fixed eye like the Ronstan Narrow Saddle screwed to the deck, or ball bearing genoa car. We have been tweaking the leads on our test boat and thought we would try a few DIY versions of the high-tech Dyneema fairleads we see on racing boats. We wondered if our DIY versions might make sense for budget-conscious cruisers. One obvious appeal of these new fairleads is that they are soft. And some types require no fasteners. A leak-proof fairlead that won’t break a toe? We were intrigued.

We first saw glued-on Dyneema lashing points on dinghies and kayaks, where a few grams saved here and there actually matter. Then they began appearing on racing keelboats, where their massive strength made sense. Lately, we have seen them on the cabin tops of high-end cruising catamarans, where they are used as lashing points for awnings and window covers. For securing deck hardware like blocks and deck gear, a stainless-steel padeye has long been the standard for cruising boats, but we began to see several advantages of Dyneema padeyes for cruising sailors.

Ultra Fairleads and Soft Padeyes

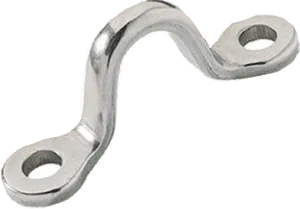

Ronstan Narrow Saddle


We think of a padeye as a sort of U-bolt secured to the deck with 2-4 bolts. But with Dyneema, it is a single loop inserted through a single hole, and secured by epoxy and splayed fibers (see “Making Your Own Dyneema Padeye”). Sometimes the loop is secured by a stopper knot.

If the padeye is to be glued down, the edges of the hole through the baseplate should be chamfered slightly, smoothed, and coated with epoxy to reduce chafe.

Our testing suggests that as long as these fiber loops are mounted in solid glass or well-backed, they are about 50 percent as strong as the line they are made from. The only downside is that the line will suffer from UV damage and the expected useful life is only about 10 years (unless made sufficiently over strength).

Although off-the-shelf varieties can be expensive, a DIY glue-on loop is relatively cheap to make. These loops are especially useful for securing awnings, or for permanent tie-down points for light gear on decks.

Ultra Fairleads and Soft Padeyes
Harken Diamond Base

Some manufactured Dyneema padeyes use two components­—a through deck fitting and a matching bushing that threads into it. The Colligo CS-31 and Antal T-Lock are examples of this (see adjacent photos). A knot or a toggle secures the Dyneema loop to the bushing. (Any of the common soft-shackle stopper knots will work for this purpose; a diamond knot is the common.) The bushing is then threaded into the through-deck fitting. These through-deck fittings must be well-sealed with bedding compound; some have watertight caps to
prevent water ingress.


For added UV resistance, you could add a Spectra sleeve over the Dyneema loop. On the DIY padeye, this cover can extend down into the baseplate hole and help capture the Dyneema loops (see photos page 9). You could also use a covered rope like New England Ropes WR2 instead of 12-plait single braid.

Ultra Fairleads and Soft Padeyes

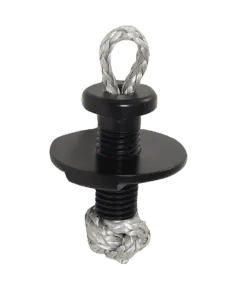

Colligo CS-31


Light duty padeyes can easily be made by mounting the loop in the center of a fiberglass disk. Bevel the edges and paint. But the working load will be limited by both the secondary bond to the deck and the bond between the core and the deck skin. Only use these for light duty.


Some fairleads don’t need a padeye. You can simply lash the low friction ring to existing hardware. For example, roller furler line fairleads are commonly attached to stanchions. You can just as easily lash a low friction ring to the stanchion. The lashing requires basic marlinspike skills, but the consequences of misalignment are less than they are on more clamp-on fairleads, which can bend under eccentric loads. A stanchion can also be a good place to lash a floating fairlead.


If the fairlead must be right on the deck, you can make a bolt-down fairlead as described in “Making Your Own Dyneema Low-Profile Padeye” sidebar. It wasn’t a lot of work, but there are a lot of off-the-shelf options as well. The two-component through-deck Dyneema fittings using a bushing are ideally suited for this purpose. You could also just drill a hole and secure a Dyneema loop under the deck with a knot—taking care to seal it well, of course.

Ultra Fairleads and Soft Padeyes

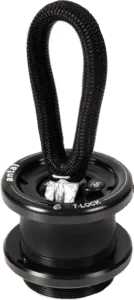

Antal T-Lock


In some cases, the best fairlead location may be floating in space, a few inches or feet above the deck. We considered using a bolt-on fairlead and a cam cleat to manage the inhauler for a new reacher, but noticed two problems. The hardware would take over a favorite helming position on the coaming. And adjusting the line in brisk winds would require the help of a winch.

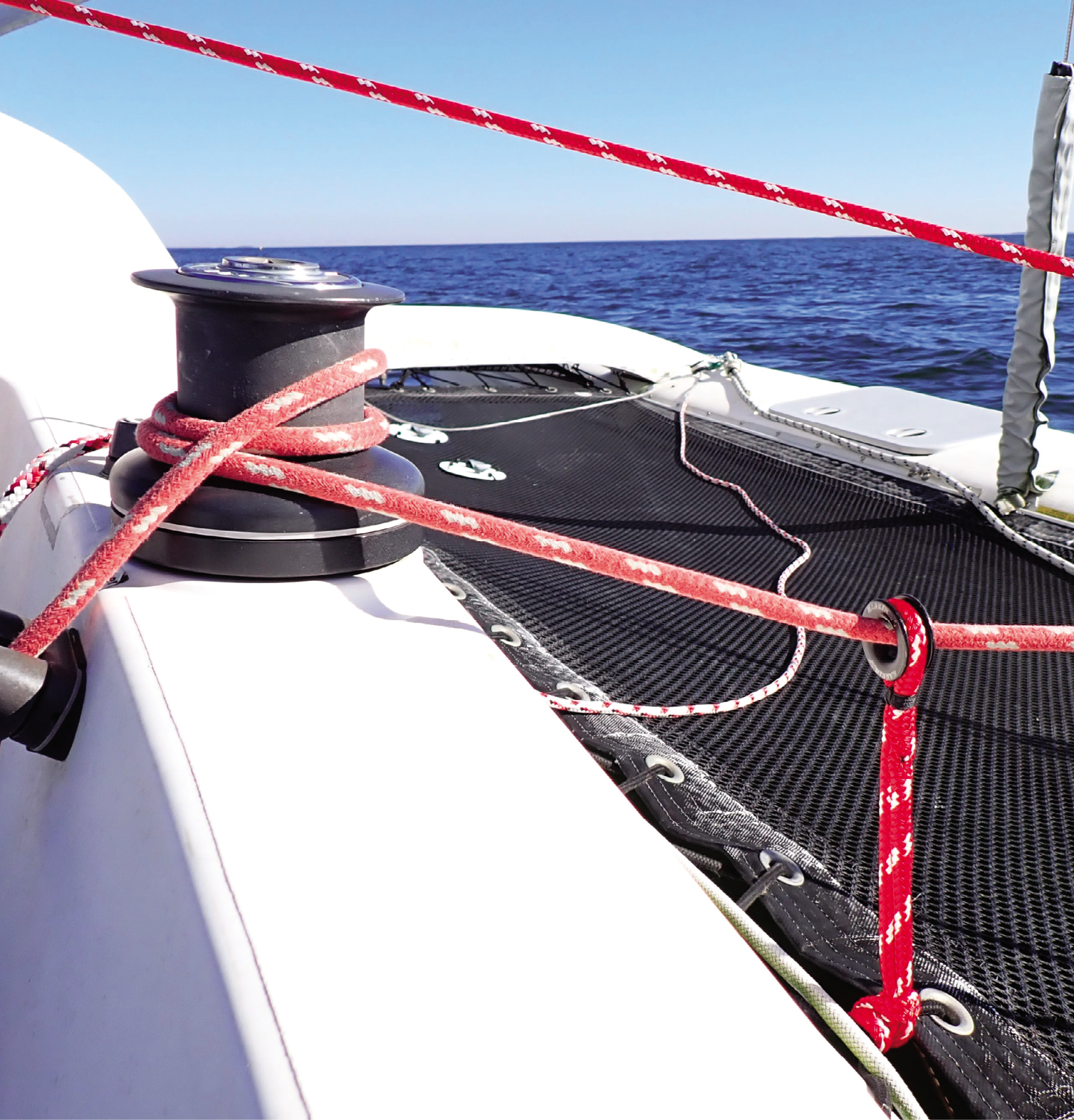

A floating lead and a nearby winch provided an elegant solution. Instead of bolting on more hardware, we secured a low-friction ring lashed into a loop to the trampoline lacing, just a short distance below the winch. When not in use, this floating lead lies on the tampoline, out of the way. If the tramp lacing, or some other existing hardware had not been conveniently located to attach our new floating lead, then we would have considered adding a Dyneema loop padeye.


We tested two samples of our DIY Dyneema padeye in shear (see “How We Tested,” page 10). The lighter sample was built from 3/16-inch Amsteel (5,400 pounds minimum breaking strength) and 3/16-inch pre-cast fiberglass, and the heavier sample was built with ¼-inch Amsteel (8,600 pounds minimum breaking strength) and ¼-inch pre-cast fiberglass. Neither showed any sign of strain at the test rig limit of 5,400 pounds (the minimum breaking strength of the climbing carabiner used for the test).

We recommend a working load of no more than 20 percent of the line breaking strength (about 1,080 and 1,720 pounds respectively) to allow for uneven stress distribution among the fibers. The fiberglass should be solid and at least equal in thickness to the Dyneema cord. If the deck is cored, remove an unusually large area of core and fill with fiber reinforced epoxy, and use a bonded fiberglass backing plate. Alternatively, you can use a deck bushing product. These are strong, expensive, and the cord is replaceable.

Ultra Fairleads and Soft Padeyes

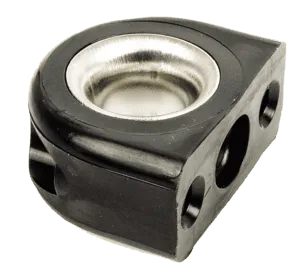

Ronstan Nylon Fairlead


Most race boats have cored decks, and so core sealing is required for all penetrations and reinforcement for any significant load. A bushing will still need to be sealed, but the load is spread by the bushing. Additionally, the Dyneema cord can be replaced, since it is generally secured by a stopper knot on the inside. There will be some sealant around the Dyneema to reduce leaks and hold it in place. These types tend to be expensive, but not more than stainless padeyes of similar load rating. Benefits are less weight and less hardware on deck.


The Ropeye XS and XSS are glued on to the deck with epoxy, so the working load depends upon the secondary bond strength of epoxy, which is greater than 2000 psi on gelcoat. However, the bond between the deck’s outer skin and core is weaker, typically 300-1000 psi. So to avoid pulling the skin away from the core, stick-on padeyes should be limited to a working load of about 100 pounds.

If the deck or attachment point is solid laminate, you can increase the working load to 300-400 pounds. However, if you have no core to worry about sealing, you might as well just drill a hole, splay or knot the end of your Dyneema loop, and have a fitting that is 4-5 times stronger than any stick-on padeye, and easier to replace.

Ultra Fairleads and Soft Padeyes
Harken Bolt-down Fairlead

You can also glue a conventional padeye to the deck by first bolting it up to a fiberglass pad. Drill the holes and countersink on the backside of the pad, screw the machine screws up through the fiberglass pad and into the padeye. Put the nuts on the top (acorn nuts give it a clean finish). Glue the whole padeye and fiberglass pad down on the deck. See also “Glue-on Mounts,” PS July 2017.


Dyneema typically loses about 3-5 percent of its strength per year in tropical sun, with 6-10 years being a practical life expectancy. Chafe will be a factor in padeyes (avoid direct attachment to metal hardware with sharp edges) but not in the low friction ring applications. To replace Dyneema that has been glued in, you’ll need to drill it out.


Dyneema padeyes offer many advantages. If the loop is a few inches long, the padeye can twist and turn to align with the load, so you rarely need swivels. Soft padeyes won’t stub your toe.

Done properly, a soft padeye can’t leak and it’s doubtful you’ll need to re-bed it during its useful life. What about lashing points, where you would normally add a padeye, but would rather not have something hard to sit on or step on barefoot? Soft padeyes are ideal for securing cockpit cushions—we’ve never had much luck with snaps.

Ultra Fairleads and Soft Padeyes

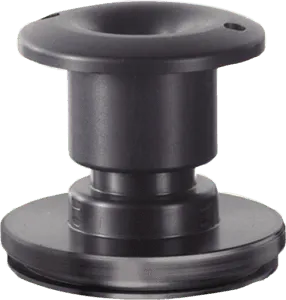

Wichard Tye-Tec


We’re still learning what Dyneema and low friction rings are good for, not only for racing boats, but also for cruising boats. When I first saw Dyneema padeyes, I worried that UV and chafe would doom them to a short life, but given the strength and durability of Dyneema, this may not be so accurate. Even if weight means little to you, simplicity, durability, and less hardware banging around are all good things.


ANTAL, www.antal.com

COLLIGO, www.colligomarine.com

HARKEN, www.harken.com

ROPEYE, www.ropeye.com

RONSTAN, www.ronstan.com

SUNCOR, www.suncorstainless.com

WICHARD, www.wichardamerica.com

Making Your Own Low-profile Fairlead

We liked the 3-D leads we installed for our genoa so much we decided the reacher needed the same treatment. This time we were only interested in inhauling. Because you don’t typically reef a reacher (you roll it up and use the jib), there is no need to adjust the fore-aft lead position.

Ultra Fairleads and Soft Padeyes

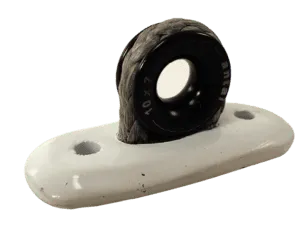

Do-it-yourself Fairlead

First, we decided to try a cam cleat. Because the inhaul line would rise at a 20-degree angle, we needed a low-profile fairlead, like a typical bolt-on deck fairlead, but we decided to base ours on a low friction ring. We’ve worn through a good many plastic fairleads, and fairleads with stainless liners aren’t particularly low friction and don’t tolerate large angles well. We had low-friction rings left over from an unrelated project, some Dyneema scrap, and fiberglass scrap, so our new fairleads would be practically free. Besides that, we thought they would be fun to make.

Ultra Fairleads and Soft Padeyes

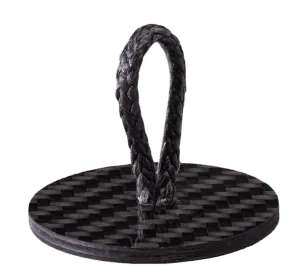

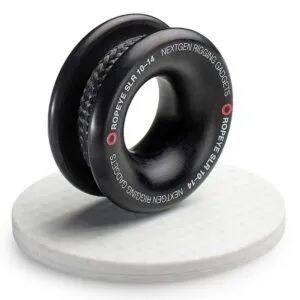

Ropeye Stick-on XS Padeye


1. Drill two holes about 1/32-inch larger than the Dyneema cord.

2. Countersink from the underside about ¾-inch to provide room for the splayed fibers. A slight chamfer on the top side as well may help with stress distribution and wear, and will also add room for epoxy sealing.

3. Thread the Dyneema through the holes and snug the low-friction ring into the loop.

4. Unlay the Dyneema fibers into the countersunk area.

5. Mix your epoxy for gluing. West System G-Flex epoxy is recommended, because it bonds to the Dyneema rope better than standard epoxies and because it is tough and flexible.

6. Spread the epoxy in the countersink pocket, and splay and press the fibers into it. Apply more adhesive over the fibers, and work it into the fibers, like wetting out fiberglass. If you are doing this is through the deck and not into a fiberglass plate, make certain the fibers penetrating the deck are well wetted out and flood with a surplus of epoxy to make it watertight. Allow the epoxy to thicken.

7. When the epoxy is nearing gel state, tension the loop and press the fibers into the recess.

8. After full cure, sand the bottom smooth.

9. Paint your new padeyes and install them with sealed through-bolts. You can also just glue the rope through the deck if you have access from below deck. We could have glued the rope through the deck and dispensed with the separate mounting plate for our own project, but we didn’t have good access from belowdecks. Made from 5 mm Amsteel, our new padeyes are vastly over strength for our purposes (a maximum of about 150 pounds working load), so we’ll never have to replace them. It’s easy to over-engineer with Dyneema.


Ultra Fairleads and Soft Padeyes

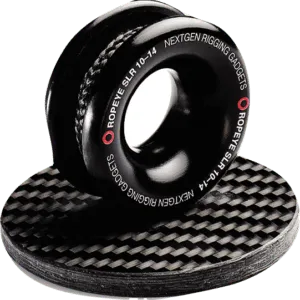

Ropeye Pro LFR

Common sense says that bonding Dyneema with epoxy is unreliable, since it is made from polyethylene, which no adhesive can reliably bond to at high load. But anything that flares out the fibers, like a compression cable fitting on standing rigging, makes it impossible for the Dyneema to pull out without removing a big chunk of fiberglass with it. You are effectively creating an epoxy wedge that prevents the ropes slipping back into the hole.

A stopper knot can also work if all you need is a loop, but there are several reasons gluing is better. First, the epoxy seals the deck penetration, keeping out water. Second, the splayedstrands spread the load across the fiberglass. And finally, the splayed strands can be very low-profile if a small recess is provided. Most of the splayed strands can be sanded away, so long as the line and epoxy wedge under the hole remains intact.

Ultra Fairleads and Soft Padeyes

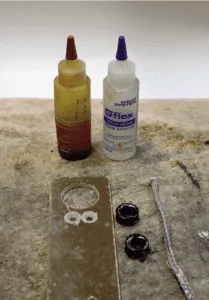

1. We used West System G/Flex epoxy, Antal low-friction rings, and 1/4-inch Amsteel to make our DIY padeyes.
Ultra Fairleads and Soft Padeyes
2. We carefully unlayed the fibers for bonding. Noticed the chamfered edge that presents a broader bonding surface.
Ultra Fairleads and Soft Padeyes
3. While the epoxy is still curing, we press the fibers down firmly to compress the fibers to flatten the surface.
DIY Padeye Tested to 5,400 lbs.

To make our do-it-yourself Dyneema padeye, we splayed the fibers and bonded them to fiberglass laminate (see page 8) using thickened epoxy. Since polyethylene fibers are notoriously difficult to bond, we expected our DIY padeye would not support the same high loads of factory-made Dyneema padeyes.

However, because the epoxy creates a wedge that fills the voids, it still prevents the Dyneema from pulling out. In the accompanying images, our DIY 3/16-inch Dyneema sample is being tested to 5,400 pounds of load. Assuming a 5:1 safety factor, the
padeye would be good for working loads up to about 1,000 pounds.

Ultra Fairleads and Soft Padeyes

1. Despite crimping caused by low-radius turn around the carabiner on our dynanometer, the 3/16 Dyneema showed no signs of failure under 5,400 pounds of load.

Ultra Fairleads and Soft Padeyes

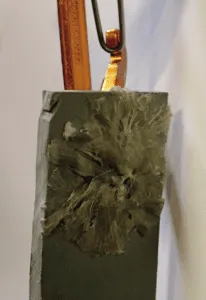

2. The fibers on the bottom of our DIY fiber padeye didn’t budge. Like zinc used in poured-socket rigging terminals, the epoxy creates a wedge that holds the fibers in place.


ROPEYEStick-onXS and XSS3 mm0None220 lbs.$22
ROPEYE Loop8-14 mm5-8 mm112-18 mm900-2,200 lbs.$107
ROPEYE TDP (through-deck)8-18 mm5-8 mm112-18 mm2,420 max.$54
COLLIGO Soft padeye CSS-3110 mm7 mm119 mm2,500 lbs.$71
ANTAL T-LOCK TL2210 mm5 mm144 mm7,716 lbs.$161
WICHARD Tye-Tec10 mm7 mm120 mm4,200 lbs.$136
HARKEN Diamond base19 mm IDuser supplies46 mm3,500 lbs.$28
RONSTANNarrow Saddle16 mm IDuser supplies45 mmNot stated.$6
DIY PADEYE DIY PadeyeXS5 mm Dyneema and 3/16" fiberglass18 mm1,100 lbs.$3
DIY PADEYE DIY PadeyeS6 mm Dyneema and 1/4" fiberglass110 mm1,700 lbs.$4


ROPEYEStick-on10-14 mm3 mmNoneNALow friction ring (LFR)50-75 lbs.$70
ROPEYEPro10-14 mm5-8 mm116 mmLFRNot given$142
ROPEYE * Pushing12 mm5-8 mm118 mmLFR2,420 lbs.$54
COLLIGO * CSS-3110 mm7 mm119 mmLFR2,500 lbs.$71
ANTAL T-LOCK * TL2210 mm5 mm144 mmLFR7,716 lbs.$161
WICHARD * Tye-Tec DL10ALL10 mm7 mm120 mmLFR2,000 lbs.$136
RONSTAN Bullseye16 mm ID4-10 mm25 mmNylon &Not given$7
HARKEN Bolt-down16 mm ID4-10 mm26 mmLFR2,000 lbs.$38
DIY Flush mount10 mm5 mm25 mmLFR1,100 lbs.$16
DIY Flush mount10 mm6 mm26 mmLFR1,700 lbs.$20
DIY On sling16 mm5 mm0NALFR1,100 lbs.$17
