Leak-proof Unions Get a Second Look

PS testers plunge into the plumber’s realm: liquid sealants, PTFE tapes, and good ol’ pipe dope.

1

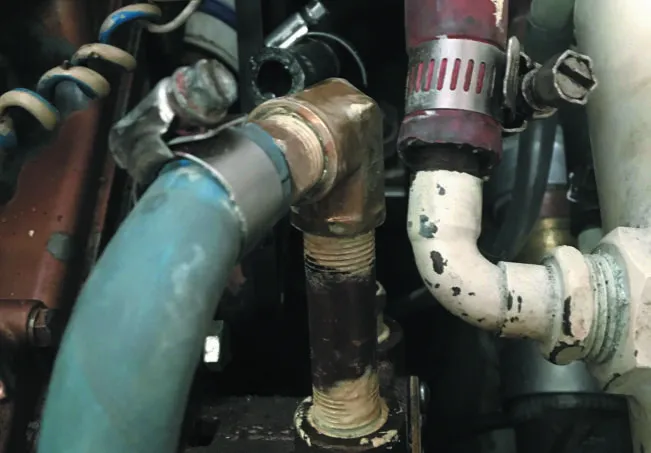

After replacing the raw water pump on his 30-plus-year old Universal diesel, PS Editor Darrell Nicholson reconnected the tangle of hoses on the cooling system, fired her up and . . . drip, drip, drip. It wasn’t the lip seals on the pump that were causing the leak this time. Nor was it a gasket. Little beads of water were trickling up the new threaded elbow he’d put on the fresh water pump. It had never leaked before.

Disassembly began anew, some pipe dope was added to the threads, and the air filter and fuel lines (removed to gain access) were bolted back into place. Drip, drip, drip.

As it turns out, the problem was a common one on older plumbing fittings ranging from through hulls to sink drains to cooling pumps. The mating threads had been buggered (that is the technical term we believe). Corrosion is the common culprit, but in this case, it appeared that the brand new elbow was very poorly machined. The threads had burrs, chips, and a couple threads were flattened as if the elbow had been crimped in a vice. The lesson was learned – new does not necessarily mean new condition when you are buying plumbing fittings.

Some thread reconditioning (see PS Advisor, page 24) and some yellow Teflon tape did the trick and the engine sump was once more as dry as a bone. P

ROPER FIT UP

Sealants prevent leaks resulting from tiny fitting imperfections, but they are not intended to compensate for mismatched threads, deep scores, dirty threads, or distortions. Be sure to clean all pipe fittings using a small wire brush before every assembly and restore the threads on old fittings as needed. Dry fit any compression fittings and tapered pipes before tightening down, to confirm that they match and fit properly.

Running threads, most commonly found on mushroom thru hull fittings, do not seal well to tapered pipe threads. The pitch (threads per inch or TPI) is the same, and it might feel like they fit, but the threads on the mushroom are weak and they don’t fully engage. The result of this all-toocommon cost-cutting measure, that the thru hull might loosen and begin to wobble.

The correct solution is thread the thru hull into a flanged seacock adapter or flanged seacock and seal it with liquid pipe sealant instead of threading the valve directly onto the thru hull. Groco has a patented flanged seacock adapter (IBVF adapter) made explicitly for this purpose (www.groco.net/ products/fittings/thru-hull-fittings/ ibvf-flange-adaptor).

Examine mating fittings closely, hydraulic and boss fittings may look like pipe thread, but they often require a gasket or o-ring for proper sealing.

Hose barbs are often damaged during the removal of stubborn old hoses; hacksaws can do a lot of damage! Either replace the barb or fill the gouges with epoxy and file smooth. Thread sealants—or any sealant, for that matter— are not for hoses and generally don’t work.

SEIZING

All of the reviewed products will prevent galling and seizing due to dissimilar metals if properly applied, though Teflon seems most effective. I’ve run miles of stainless and copper in refinery settings using Teflon tape or Teflon pipe dope and never encountered a seized fitting that had been assembled using an appropriate thread sealant

Overheating and subsequent decomposition of Teflon can produce perfluoroisobutene, which is 10 times as toxic as phosgene. Inhalation of even a minute amount can be fatal. Do not use Teflon on extreme (>500F) temperature areas of exhaust manifolds, cooking appliances, or heater exhaust.

WHAT WE TESTED

We also tested popular brands of both tape and liquid sealants. Nearly all of them can be found at local hardware stores or big-box retailer. They are readily available online.

HOW WE TESTED

Ratings are based on forty years as an engineer and sometimes-pipefitter in the petroleum and industrial wastewater industries, and 35 years of boating. I’ve assembled a lot of pipes, and fought plenty of leaks on old equipment. I’ve dealt with all styles of fittings, many chemicals, lots of heat and pressure.

All of the products listed in the table are rated to 10,000 psi and at least 400F. Differences in quality and performance are too minor to quibble over, but do note set (medium vs. soft) and material compatibilities (some should not be used with PVC).

Note that we did not review gasket sealants or silicon caulks as pipe sealants. They fail way, way too often. Don’t try it.

TEFLON TAPE

Comprised of 95 percent Teflon and no adhesive, Teflon tape is clean and easy to use, compact, and has no shelf life. Several rolls (it runs out fast) belong in every tool box for those reasons. It’s handy and is very effective when properly applied to pipe up to about 1-inch in diameter. In larger sizes, pipe dopes are often more reliable. Tape allows immediate full pressure use, which is important on hydraulic systems. Dopes require curing period (typically 4 hours) for pressure over 100 psi. Because pipe dope does not set, the fittings are easier to disassemble, but they may require slightly greater torque for sealing and to resist accidental twisting.

There are several types of Teflon tape, and color designates their preferred use, but it does not mean the tape is limited explicitly to that purpose:

• White: used on NPT threads up to 3/8 inch

• Yellow: used on NPT threads 1/2- to 1.5 inch, often labeled “gas tape”

• Pink: used on NPT threads 1/2- to 1.5 inch, safe for potable water (but so are white and yellow tapes)

• Green: oil-free PTFE used on oxygen lines and some specific medical gasses

• Gray: contains nickel, anti-seizing, anti-galling and anti-corrosion, used for stainless pipes

• Copper: contains copper granules and is certified as a thread lubricant but not a sealer

You would think that more layers of white tape could do the same job, but not in my experience. It just shreds. You need the thicker tape.

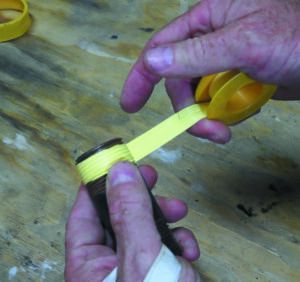

Apply by winding 3-4 layers around the threads in a clockwise direction (facing the end of the pipe). Leave the last 1-2 threads bare so that the shreds of Teflon tape do not fall inside the pipe. Because pieces can shed, tape is generally considered unacceptable in hydraulic and diesel fuel systems, but with careful attention to thread ends it is safe. Excessive layers are sometimes applied to adjust the fit or to compensate for stripped threads, but this can interfere with proper sealing and reduce the pressure rating and mechanical strength.

OATLEY TEFLON TAPE

White. This is for 1/8- to 3/8-inch pipe and useable up to about 1-inch. It is thinner than other Teflon tape products and is suitable for water and all fuels.

Yellow. For 3/8- to 1 ½-inch pipe, it is thicker than white Teflon tape and is what gas inspectors want to see. This is suitable for water, all fuels, natural gas, and propane. (This is what the editor used to seal his water pump elbow.)

Pink. Similar in thickness to yellow gas tape, it is used for potable water. However, it is suitable for all fuels.

Grip Tape. Thicker than yellow gas tape, it is suitable for water, gas, and all fuels. We like it for 1.5-inch pipe, specifically in cases where we want a more robust connection than we would get if we used pipe dope.

Note: We have used tape from RectorSeal and found the performance identical to that of Oatey. Off brand tapes seem to shred more easily and sealing may not be as reliable.

PIPE DOPE (LIQUID THREAD SEALANTS)

Liquid sealants are comprised of combinations of Teflon and/or clay in a suspension based on oils and solvents. All dry to some extent, but some remain flexible and easy to remove, while others stiffen to some extent, providing added support but making removal more difficult. Loctite products belong in a separate group. It is comprised of methacrylate, which needs no oxygen to cure. Less torque is required for sealing, but these sealants create a glue-like bond making it more difficult to take apart. Many fastidious workmen swear by Loctite products for permanent installation of critical lines. Maybe a small tube for the engine room makes sense, but it has a shelf life. US pipefitters use Oatey or Rectorseal for 98 percent of their work.

Liquid dope is better than tape for straight threads because estimating the amount required is not critical, and because it flows to fill gaps. Throughhull fittings are a classic example of a straight-thread union that is best served by liquid sealant.

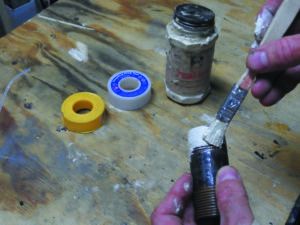

Apply dope by brushing at a 45-degree angle to the threads. This will fill the grooves better than brushing in the direction of the threads. Apply dope only to male threads in sizes up to 1 ¼-inch. Apply to male and female in larger sizes. I often use a cutdown ½-inch chip brush, because the brush attached to the cap can become worn-out.

A thin coating of pipe dope over compression fittings and unions adds lubrication, easing the fit-up and glossing over minute imperfections. This is mostly applicable to larger fittings (larger than 1-inch for unions and larger than 1/2-inch for compression fittings). With smaller fittings, a new compression fitting is the better answer. Teflon tape over compression fittings is generally frowned upon, but it can work pretty well in noncritical applications.

Using pipe dope to seal leaking hoses is a botched repair that will leak. Fix the barbs, position the clamps properly, and replace the hose if weathered.

Dope is generally not used on PVC or ABS threaded fittings because solvents can cause cracking; check product approvals. Plastic fittings generally require minimal lubrication and sealing, so a few wraps of Teflon tape is plenty. Dope can be used on polyethylene or nylon/Marelon fittings. Overtightening plastic fittings can lead to cracking of the female part, so tighten the parts gently.

RECTORSEAL

This is the go-to product for plumbers and pipe fitters, although, as mentioned, stating this will probably ignite the ire of the Oatey fans, and others.

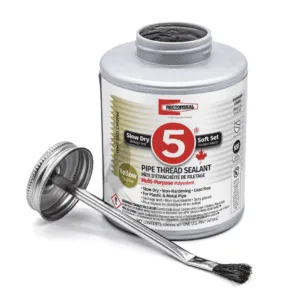

RECTORSEAL NO. 5

This is probably the most popular pro product, is it the standby for most plumbing unless something else is called for. The prevalence of seawater and corrosion suggests a product with Teflon would be better for most applications, but this is still good stuff for general use onboard.



T PLUS 2

Rector’s other popular product is similar to No. 5, but is based on Teflon (PTFE). I encounter a lot of this used on refinery cooling water systems.

TRUE BLUE

This is another Teflon product but with a medium set. Popular around boilers and applications with extreme vibration.

OATEY

Most home supply stores and hardware stores stock at least one or two types of Oatey sealant. You’ll find it in the plumbing aisle, of course.

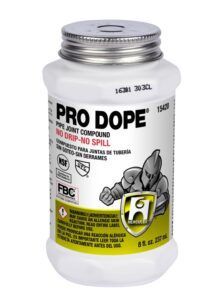

PRO DOPE

Nearly as popular as Rectorseal No. 5, this is a conventional dope with reliable performance.

GREAT WHITE

This product is comparable to Rectoreal’s Real Tuff, but at a slightly lower price point. I find it is not as effective as Real Tuff, but this could just be a personal bias.

REAL TUFF

This is my go-to product for most boat and industrial applications that are not better served by yellow Teflon tape. This has a high volume of Teflon, provides good sealing, and is easy to remove. I’ve used it on seacocks.

HERCULES BLOCK SEALANT

This is similar to True Blue, and one of my best contractors swears by it for boiler work, and I’ve got to agree with him. Specifically, it seals old rusted fittings subject to vibration and extreme temperature cycling better than soft set sealants. But you’ll need a long wrench to get it loose.

LOCTITE 575 AND 567

These products are expensive and add some locking to the joint. I’ve only seen them used on hydraulic systems.Both are medium set and both are harder to remove after setting, making them less preferable for many applications. They are slightly thinner and require a better fit for good sealing.

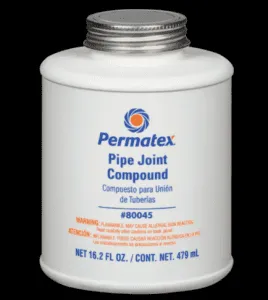

PERMATEX

Although the editor has used a variety of Permatex products for sealing water pumps, exhaust flanges, and other components, I have less experience with these.

PIPE JOINT COMPOUND 80045

Much like RectorSeal No.5, this is a conventional sealant with a solid reputation.

THREAD SEALANT WITH PTFE 80633

This is a Teflon soft set sealant. It is comparable to Oatey Real Tuff.

CONCLUSIONS

You need several products. Yellow or pink Teflon tape is perfect for smaller stuff and handy to keep in the tool box. Soft set liquid sealant can be better for older fittings with worn threads. Reserve medium set dope for things you don’t ever plan to remove, and only for places with room for a big wrench.

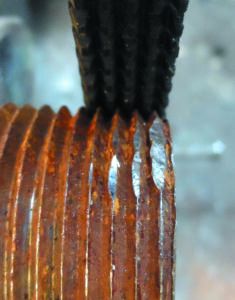

A thread restoring file is a life saver when a seacock thread or engine bolt gets buggered up, or even when rebedding a deck full of fasteners that are clogged with sealant. Combined with a wire brush, a set of taps, and some diligence, you can solve most thread problems.

BRAND MODEL CONTAINS TEFLON COLOR SET PROPANE/ GASOLINE/ FUEL PVC/ CPVC/ ABS NYLON/ MARELON/ METALS SIZE PRICE/ OUNCE PRICE
RECTORSEAL No. 5 No Yellow Soft Yes No Yes 4 oz. $2 $8
RECTORSEAL T plus 2 Yes White Soft Yes Yes Yes 4 oz. $2.75 $11
RECTORSEAL True Blue Yes Blue Medium Yes Yes Yes 4 oz. $1.75 $7
OATLEY Pro Dope No Gray Soft Yes Yes Yes 4 oz. $1.50 $6
OATLEY Great White Yes White Soft Yes Yes Yes 4 oz. $1.75 $7
OATLEY Real Tuff Yes White Soft Yes Yes Yes 4 oz. $2 $8
OATLEY Block Yes Blue Medium Yes Yes Yes 4 oz. $2 $8
LOCTITE 575 No White Medium Yes Yes Yes 8 oz. $7.88 $63
LOCTITE 567 Yes Off white Medium Yes Yes Yes 8 oz. $9.50 $76
PERMATEX Pipe Joint Compound 80045 No Black Soft Yes No Yes 16 oz. $0.53 $8.50
PERMATEX Thread Sealant with PTFE 80633 Yes White Soft Yes No Yes 16 oz. $0.96 $15.40
Simple Tricks for Sealing Threads

There are as many options for sealing pipe threads as there are pipefitters. And every pipefitter has their favorite sealant. Like boxers vs. briefs, we’re not going to attempt to persuade anybody with a settled opinion. We can compare strengths and weakness, and describe the differences in application so that you can make up your own mind which works best for you. There is no single product that applies to every situation, and most pros use several types, according to the application.

Leak-proof Unions Get a Second Look

1. Apply tape by winding 3-4 layers around the threads in a clockwise direction (facing the end of the pipe). Leave the last 1-2 threads bare so that the shreds of Teflon tape do not fall inside the pipe.

Leak-proof Unions Get a Second Look

2. Apply pipe dope by brushing at a 45-degree angle to the threads; this will fill the grooves better than brushing in the direction of the threads.

Drew Frye, Practical Sailor’s technical editor, has used his background in chemistry and engineering to help guide Practical Sailor toward some of the most important topics covered during the past 10 years. His in-depth reporting on everything from anchors to safety tethers to fuel additives have netted multiple awards from Boating Writers International. With more than three decades of experience as a refinery engineer and a sailor, he has a knack for discovering money-saving “home-brew” products or “hacks” that make boating affordable for almost anyone. He has conducted dozens of tests for Practical Sailor and published over 200 articles on sailing equipment. His rigorous testing has prompted the improvement and introduction of several marine products that might not exist without his input. His book “Rigging Modern Anchors” has won wide praise for introducing the use of modern materials and novel techniques to solve an array of anchoring challenges.
