Underwater Epoxy Test

PS testers dive into a sticky problem. Which glue really holds fast when the chips are down?

4

Although laminating epoxies can tolerate some moisture, we know that excessive moisture can prevent a good cure. So how can we manage an emergency repair, when water is seeping into the bilge through a hairline crack—or worse? Well, there are products intended for underwater use, we’ve used them, and they work.

Although a collision with a reef or shipping container is the nightmare scenario, it really isn’t that easy to knock a hole in the hull of a well-found boat. An enlightening article in Yachting Monthly about emergency leak repair methods noted that it took a marine professional armed with a hammer and chisel 25 minutes to breach the solid-laminate hull of their test boat.

If you rip a 2-foot hole in the hull, there is probably nothing you can do anyway.  But far more boats are lost because of a smallish crack around a through hull, rudder tube, or bow thruster. We’ve hit some hefty submerged logs that were brought down by spring floods. The hull always bounced off with barely a smudge on the antifouling paint, but rudder shaft or daggerboard case was always more vulnerable, bending, cracking, and sometimes leaking. However, these leaks are fixable with a few scraps of wood and some screws—or even underwater epoxy.

What We Tested

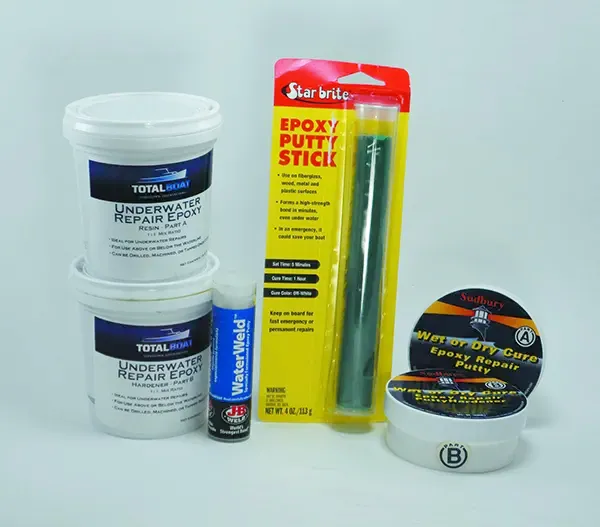

In addition to their more traditional repair or laminating epoxies, many vendors also offer underwater cure products, designed for both temporary and permanent repair when hauling out and drying is not possible. The products we tested included Pettit Splash Zone, JB Water Weld, Total Boat Underwater Repair Epoxy, Star brite Epoxy Putty Stick, and Sudbury Wet or Dry Cure Epoxy Repair Putty, representing a cross-section of the types on the market.

How We Tested

First, we made up fiberglass test coupons, sanded them with 60 grit paper, and bonded them together with underwater epoxy. One set was made up dry, and the other set was bonded underwater. These were pulled to failure in shear to determine relative bond strength.

We then cut a rectangular opening in the side of a plastic bucket, bolted a gasketed, replaceable  fiberglass sheet over the opening, and then cut 1/8-inch slits in the fiberglass sheet to simulate cracks. We then fill the bucket with 65F water and attempted to seal the simulated cracks from outside while the water was flowing, judging both difficulty in working with material and the soundness of the patch after curing.

PS Epoxy Testers Let it Flow

The stick products are stiffer than the tub products. As a result, they are harder to mix and slightly more difficult to get a good bond, but they are superior for stopping an active leak. The tested stick products permanently stopped the 1/8-inch saw cut leak within moments, while none of the tub products held for more than a few minutes.

    Underwater Epoxy Test

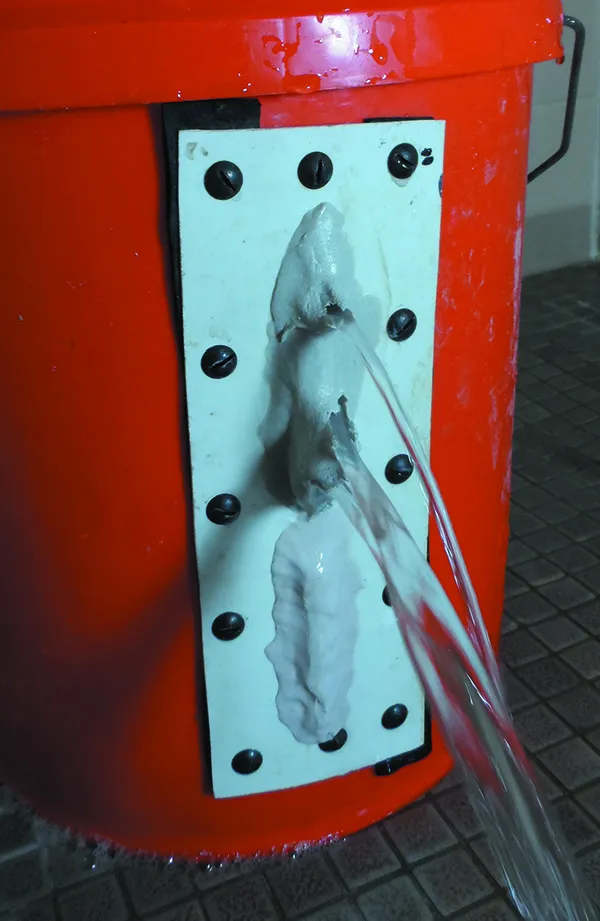

  1. Sudbury Wet or Dry Epoxy blows out (top), but JB WaterWeld holds tight.
  2. Underwater Epoxy Test

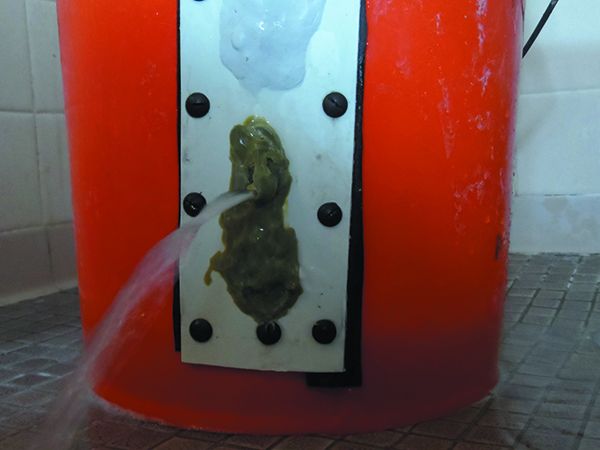

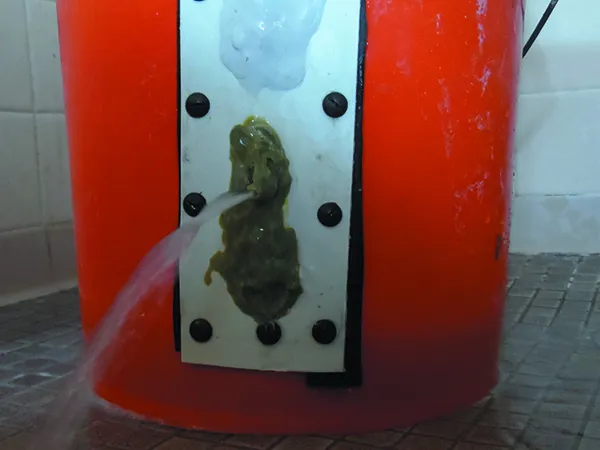

  3. Products packaged in tubs bond well but lack the stiffness to stay put under pressure..
  4. Underwater Epoxy Test

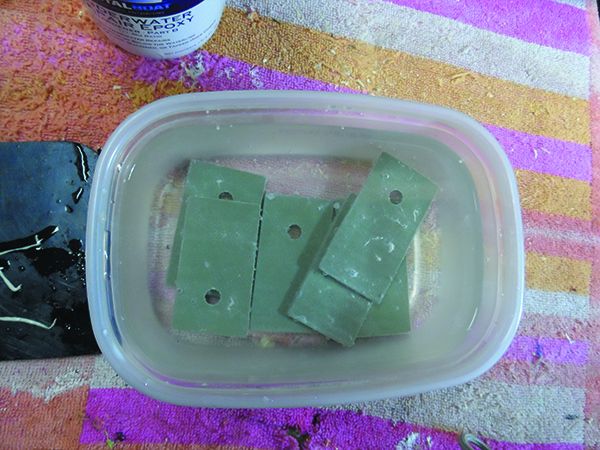

  5. Fiberglass samples were soaked for several weeks before bonding.
  6. Underwater Epoxy Test

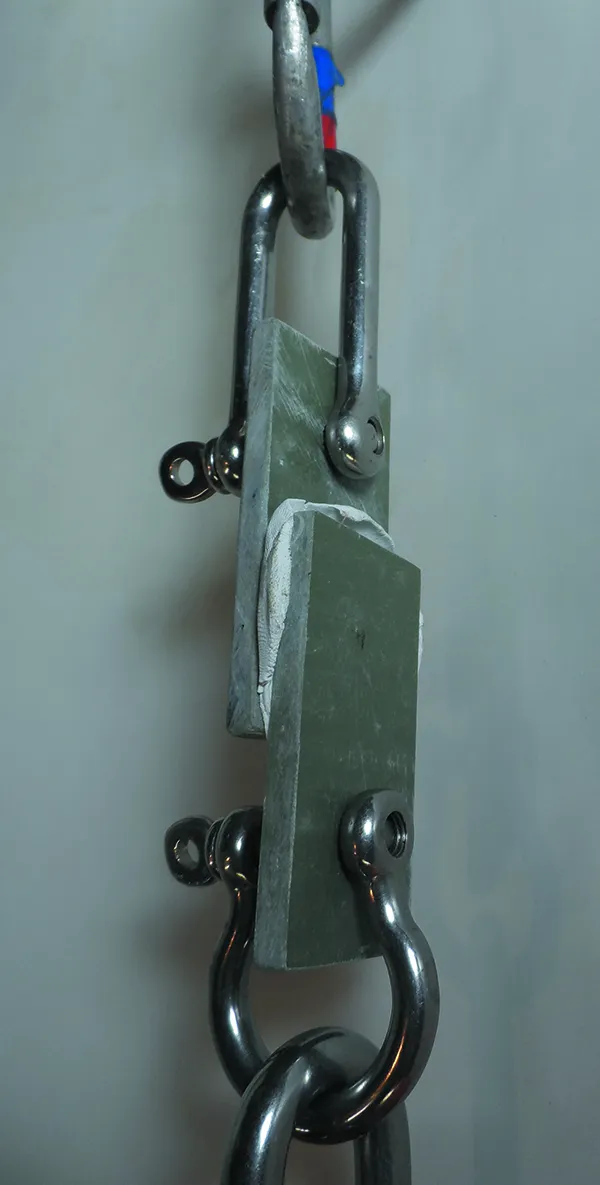

  7. This Star brite sample undergoes shear testing. The epoxies were allowed to cure for 48 hours before shear testing.
  8. Underwater Epoxy Test

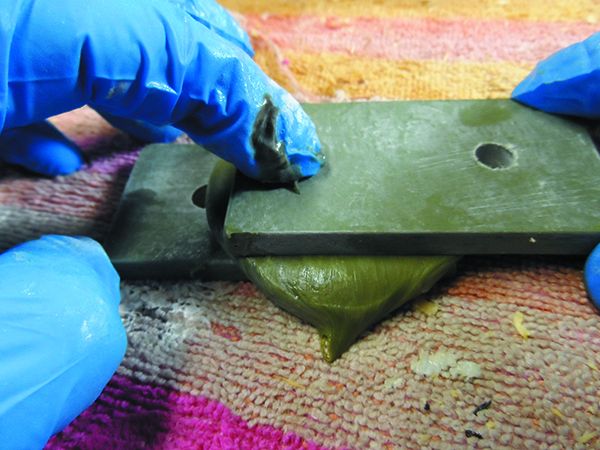

  9. Testers apply pressure to wet fiberglass bonded with Total Boat Underwater Epoxy. Lapping over screw holes creates a mechanical hook.

Observations

Low Strength. The rated tensile strength of these products is 3-8 times lower than laminating epoxies but comparable to filler products, such as Marine Tex. The sticks have enough adhesion to stop a leak, but will need reinforcement.

The tub products are stronger and can produce a permanent repair, depending on the stress and geometry. Our advice, as with duct tape, is to use a lot. Clean a large area, maximize bond area by smearing it out and rubbing it in, and don’t be shy about thickness. Try to avoid high stress for several days; although they appear cured in less than 8 hours, strength continues to increase, sometimes as much as double, over the next 2 days. Our reported strengths are at 48 hours.

Surface Preparation. Obviously, we can skip the “dry” part. But it’s still important that the surface be clear of loose material and dirt. If you’re working from the outside of the boat, the slime must be scrubbed off and antifouling paint must be sanded away to bare laminate.

In the bilge, mud, slime, and oil must be scrubbed off and rinsed away with clear water (fresh or salt). All surfaces should be scratch sanded to create a tooth; 60 grit is not excessive. Most plastics bond reasonably well if sufficiently roughed up; we’ve had good experiences bonding float switch brackets. It also helps to create a mechanical lock around the object. In the case of a float switch, the epoxy must surround the base, forming a buttress. Lap the epoxy up and over screw indentations, creating a mechanical hook.

If you’re repairing a hole in the hull, try to repair from both the inside and the outside; where the two applications meet they will chemically bond and become one piece. Cram the epoxy deeply into cracks and fissures so that it can key into irregularities. If some of the epoxy extrudes out the opposite side of the hull, good. Press it back on itself, like upsetting a rivet.

Low Exotherm. Even fast-setting underwater epoxies, such as JB Weld WaterWeld, set without appreciable exotherm. If we were to mix the same thickness of laminating epoxy, within 10 minutes it would begin to heat, reaching 300F or more, bubbling, and becoming brittle. Underwater epoxies don’t do this, even above water. This is in part because they aren’t as strong. Fewer chemical bonds are created per unit volume, generating less heat.

Application

Once applied, the thermal mass of the boat moderates temperature rise. Application also tends to go more quickly. Instead of fooling around with positioning glass and wetting it out, you mix up a golf ball size piece and smash it into the crack or cavity. Yes, if you mix up a fist-size chunk and then do nothing with it, you’ll feel the heat. Don’t do that. Underwater there is water cooling.

Cold Water. Most of us don’t sail when the air is icy, but even summer sailing in the Great Lakes, Maine, or the United Kingdom has water temperatures below optimum for curing.  Expect a slower cure and reduced strength. Only Simpson FX-764 is recommended for use below 50F.

Mixing. Stick products (JB WaterWeld and Star brite Putty) are cut to length, insuring a perfect ratio. They are very firm and are mixed by repetitive folding and kneading. Tub products are softer and are best mixed by rolling a ball between moistened palms.

All of the products are super sticky; a strong grab is vital when working underwater. The epoxy will stick to your hands more than the work piece, so keep your hand wet; underwater this happens naturally, but working in the bilge you may have to remember to wet your fingers, as you would when rolling meatballs. Press the epoxy firmly in place, wiggling the wad and pressing down firmly to get a good bond. Rub it down thoroughly with wet fingers, tapering the edge into the substrate.

Although Pettit states that working with bare skin is acceptable and it is true that the epoxy sticks more to gloves. But gloves work just fine as long as you keep them wet. In cold field conditions, warm the two parts to room temperature before mixing; the sticks are very difficult to mix below 60F.

Working Time. Like laminating epoxy, underwater epoxy bonds best when fresh. Try to apply the mixed epoxy within a few minutes. Once it begins to kick, even though it may still feel workable, it will not bond as well.  Better to throw the remainder away and mix a fresh batch.

Not for Potable Water. None of the tested products are rated for drinking water. Among other things, it is too difficult to insure a perfect mix.

Underwater Epoxies

TYPE CONVENTIONAL EPOXY UNDERWATER EPOXY
MAKER West SystemsMarine Tex JB Weld Star brite PettitTotal BoatSudburySimpson
PRODUCT105/205 Epoxy PuttyWaterQeldEpoxy Putty StickSplash Zone A-788Underwater Repair EpoxyWet or Dry Cure-Epoxy Repair PuttyFX-764
PACKAGINGTinsTinsStickStickTubTubTubTub
FIRM TIME 4 hours 1 hour15 min.15 min.2 Hours2 Hours2 Hours2 Hours
FULL STRENGTH TIME 16 hours24 2 hours 2 hours8 hours6 hours10 hours24 hours
MINIMUM TEMPERATURE 40 hours50 hours50 hours50 hours50 hours50 hoursNot published40 hours
PUBLISHED TENSILE STRENGTH7800 PSI 4000 PSI1300 PSINot published4100 PSINot publishedNot published3450 PSI
PUBLISHED SHEAR STRENGTH, FIBERGLASSNone listed.None listed.None listed.500 PSINone listedNone listedNone listed1300 PSI
DRY>2600 PSI1400 PSI500 PSI460 PSI1350 PSI1250 PSI350 PSI1300 PSI
WETNot testedNot tested450 PSI3401000 PSI1100 PSI180 PSI1200 PSI
SAGMust be thickenedNoneNoneNoneSlightSlightSlightNone
PRICE/VOLUME$150/153.5 oz.$45/11oz.$5/2 oz.$16/4oz.$63/32oz.$52/32oz.$26/6oz.$154/64oz.

Stopping Leaks. The stick products are stiffer than the tub products. As a result, they are harder to mix and to achieve a good bond, but they are far superior for stopping an active leak. Both of the stick products permanently stopped the 1/8-inch saw cut leak within moments, while none of the tub products held for more than a few minutes.

Even when we reached inside the bucket and pressed the extruded material over the crack from the other side, like upsetting a rivet, they blew out within a few minutes. The tub products can stop a leak if applied from the outside (pressure side), if you apply enough and the crack is not too large. In this case, it also helps to make the gap smaller by filling with wadded up fiberglass cloth or wood scraps.

High pressure. An advantage of fast cure products is that you can hold them in place by rubbing them down until they begin to stiffen. When working deeper in the bilge, with more pressure, the required 15 minutes passes slowly when stopping a leak.

Just as a welder will tack pieces together to hold them in place and prevent warping while he runs structural beads, I often tack projects together with thickened 5-minute epoxy, before laying on the filets of thickened epoxy that will provide the actual strength. The same is true with underwater epoxies and leaks. Push in some stick epoxy to stop the flow, and then reinforce inside and out with a stronger tub product or conventional laminating products and procedures.

The tub products are better at repairing a ding that is not leaking, such as one resulting from grounding or striking dock. Lower in viscosity, they flow more deeply into the cracks and fissures, and the resulting repair may well be permanent, assuming no structural damage was done.

Shelf Life. Every so often we hear reports of stick-type putties that just crumbled when mixed. We’ve seen this too, although the product was opened, half used, and probably a decade old.  The two parts are not separated by a physical barrier, only their extreme viscosity, and over time this close proximity does some damage.

Star brite states the unopened shelf life is two years and advises no more than 6 months for opened packages. Two-tub epoxy products and laminating epoxies typically have very long shelf lives.

Yes, You Can Laminate an Underwater Patch
Underwater Epoxy Test
WaterWeld plugged an active leak next to this centerboard trunk. Stronger, more substantial laminated repairs would be
possible once the leak was stopped.

Sometimes a little more reinforcement is needed, but sometimes it can only be applied from outside. “Laminating underwater—that’s lunacy!” you say. Maybe. But using a few of the right tricks, you can make a pretty serviceable patch that should sail far.

  • Laminating resin. It must be relatively thin and capable of both bonding and curing underwater. West Systems G-Flex will do that.
  • Cloth. You want to do this in one layer, so you need something that both conforms well and builds some strength. Two layers of 1708 biaxial fiberglass is a good choice.
  • Prepare the surface. Bottom paint needs to be sanded off to bare fiberglass. Use course wet/dry sandpaper.
  • Pre-wet the cloth on dry land. This is the key. Pour the resin onto the cloth, spread, and work through the cloth using a laminating roller. Ideally, this is done on top of peel ply, but a plastic trash bag will work perfectly well in a bind.
  • Apply. With the peel ply still in place, dive under the boat and press firmly over the desired area. Working from the center, slowly work your way outwards to make a good bond. Leave the peel ply in place.

There are two reasons for using peel ply. One is for ease of handling in the water. Although we usually work pre-laminated cloth without peel ply on dry land, it makes handling it in the water much easier. Because the cloth will initially stick to your hands more than the boat, the peel ply makes the patch much easier to apply. Finally, if there is still some inward leakage, the peel ply prevents the water flow from blowing the resin through the cloth and creating leaks.

Once resin is cured, you can remove the peel ply if you want to, but there’s really no need to for an emergency repair, other than to inspect your work. Just leave it.

You can buy a kit for this (compositepatch.com). It comes prepackaged, with resin and fabric in a bag. At over $250 for a few square feet it’s rather expensive, but it makes for neat work in awful conditions.

Pettit Splash zone A-788

A soft putty, Splash Zone becomes firm within 2 hours and fully cures in 8 hours at 70F. It should not be exposed to temperatures below 50F for 6 hours. It cures hard, and is nearly 50% of the strength of conventional epoxy products.

Bottom Line: Recommended for underwater dings and general repairs below the waterline and in the bilge.

Total Boat

Very similar to Splash Zone in all characteristics. Firm in 2 hours, cure in 6 hours at 70F. Strong, but won’t hold back a water leak.

Bottom line: Budget Buy for underwater dings and general repairs below the waterline and in the bilge.

Sudbury Underwater Epoxy

A little more difficult to mix, more prone to sagging, weaker than Total Boat and Splash Zone, and more expensive, it was not our favorite.

Bottom line: There are better products.

Simpson FX-764

We’ve used this in industry to repair concrete wastewater tanks in the winter, and the National Park Service uses it to install in-stream monitors in icy trout streams. Although slow curing, it has the advantage of working down to 40F and slightly below, which should be enough for arctic explorers.

Bottom Line: The Best Choice for cold water sailors.

JB Weld WaterWeld

WaterWeld is sticky, completely non-sagging, and stiff enough to hold back water. This is what you’ll reach for when water is coming in.

Bottom line: Our Best Choice for stopping leaks and mounting sump floats.

Star Brite Epoxy Repair Putty

Very similar to JB WaterWeld, this is just a little harder to mix, a little stiffer, and did not seem to adhere quite as well. But it was close.

Bottom line: Recommended for stopping leaks and mounting sump floats.

Dipping into a Sticky Situation

After all of the lectures about the importance of good surface prep, we had a hard time believing we could get a good bond under water. So we had to test. Underwater epoxies are super sticky; a strong grab is vital when working underwater. Wet your hands frequently to prevent this. Mix by rolling between palms or folding back and forth, but always keep it moving. The corollary is that you must press and kneed the products on to the surface for several minutes to force the water out and create a bond. Just keep rubbing until it sticks. Following this procedure, we never experienced a failure to bond, not even crawling in the bilge fighting active leaks.

    Underwater Epoxy Test

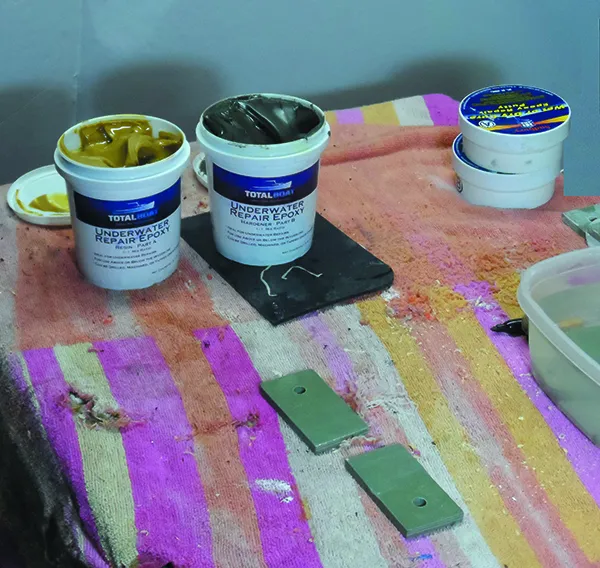

  1. The test setup: Water (in plastic container, partially visible) is for wetting hands before working, the fiberglass coupons are ready for gluing, and the test epoxies are lined up and ready to apply.
  2. Underwater Epoxy Test

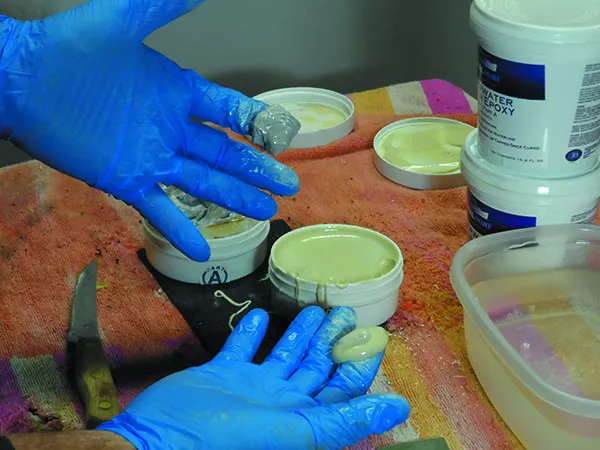

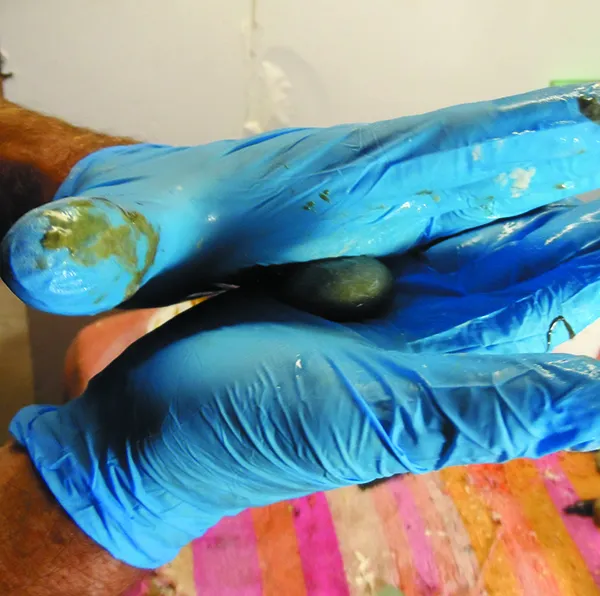

  3. The stick products are very firm and are mixed by repetitive folding and kneading. Tub products are softer and are best mixed by rolling a ball between moistened palms, as shown here.
  4. Underwater Epoxy Test

  5. Some products, such as the Pettit Splash Zone A-788 allow bare hands, but our testers wore gloves. The gloves are stickier than hands, but as long as they were kept wet, this was not a big problem.

Conclusion

Can these products actually seal underwater leaks in field conditions? In fact, we’ve repaired minor leaks on our test boats working from the bilge. We interviewed multiple marine professionals who related stories of temporary underwater repairs. While you’re not likely to glue a patch over a gaping hole, you have an excellent chance of staunching even a considerable leak around the cracked a rudder tube or through hull fitting.

Need to make your repair a little more permanent, since you have a ways to go to drydock? Get the area dry by sealing with underwater epoxy, and then laminate over it using conventional materials. West System G-Flex bonds reasonably well to wet surfaces and can be used as a laminating epoxy.

In combination with plywood, fiberglass sheets, and a bunch of screws, considerable emergency repair may be possible. Consider putting a patch on the outside as described above in “Yes, You Can Laminate an Underwater Patch.” Although not pretty, a very strong repair can be created. Once the boat is lifted out, you’ll want to grind it off and do a proper repair; such is boat work.

Testing quickly divided the products into two groups. Sticks are fast, stiff, of limited strength, and good for stopping active leaks. The slow cure and lower viscosity of tub products means they are not so good at stopping leaks, but they are stronger and make permanent repairs. Each has a different purpose.

We think it’s prudent to keep a stick in every boat tool kit, plus tub of underwater repair epoxy in the locker if you are going far.

Contacts
Practical Sailor has been independently testing and reporting on sailboats and sailing gear for more than 45 years. Supported entirely by subscribers, Practical Sailor accepts no advertising. Its independent tests are carried out by experienced sailors and marine industry professionals dedicated to providing objective evaluation and reporting about boats, gear, and the skills required to cross oceans. Practical Sailor is edited by Darrell Nicholson, a long-time liveaboard sailor and trans-Pacific cruiser who has been director of Belvoir Media Group's marine division since 2005. He holds a U.S. Coast Guard 100-ton Master license, has logged tens of thousands of miles in three oceans, and has skippered everything from pilot boats to day charter cats. His weekly blog Inside Practical Sailor offers an inside look at current research and gear tests at Practical Sailor, while his award-winning column,"Rhumb Lines," tracks boating trends and reflects upon the sailing life. He sails a Sparkman & Stephens-designed Yankee 30 out of St. Petersburg, Florida.
