Bottom Paint Update

Coppercoat sea trial; Propspeed proves its mettle, once again.

5

I’ve been aware of Propspeed (a New Zealand product) for many years having been based in Auckland off and on since 1979. Propspeed, is a foul-release silicone coating famous for preventing marine growth on props and struts has always been produced in New Zealand, with reps in different countries.

During the South Pacific cyclone season we’d leave Mahina Tiare, our Hallberg-Rassy 46 in Half Moon Bay Marina’s dry storage facility while we returned to the United States. In April, prior to launching, BoatSpray, the boatyard’s painting company, would paint the bottom with antifouling. Each year, without fail, the manager would try to convince me to allow them to apply Propspeed. I’d decline, saying that we’d just snorkel down to scrub the prop with scrub brushes and 3M scouring pads.

One year we returned to discover that our then MaxProp was glistening with Propspeed’s yellowish silicone finish. When I asked why, BoatPaint’s manager said, “That’s a gift, mate! We know after having it for a season that you’ll be back for a recoat!”

Sure enough, after 10,000 miles of sailing through the South Pacific and returning to Auckland, we were convinced. In seven months we experienced almost no growth and only minor erosion of the coating at the blade tips.

I recently started seeing ads for PropGlide a similar, but less expensive product, made in the US. When I asked the owner of BoatSpray about PropGlide, he said the rep annually visits and that a few of his customers have requested it be applied.

The coatings are very similar, but PropGlide uses an acid etch called PropPrep, applied with a provided towlette. I thought it worthwhile to try testing both, so last April we coated two blades coated with Propspeed and one with PropGlide.

We sailed 10,000 miles during 30 weeks and at haulout, the Propspeed appeared to have been slightly more effective and adhered better.

The painting contractor proposed an additional test, so we had one of our two bow thruster props coated with Micron 77 and the other with Propspeed. The Propspeed did a far better job of preventing growth.

Coppercoat

Last year at the Pacific Boat Show in Richmond, California while making the rounds of the vendors, Amanda chatted with Jim, the very keen and knowledgeable US importer/distributor of Coppercoat.

Bottom Paint Update

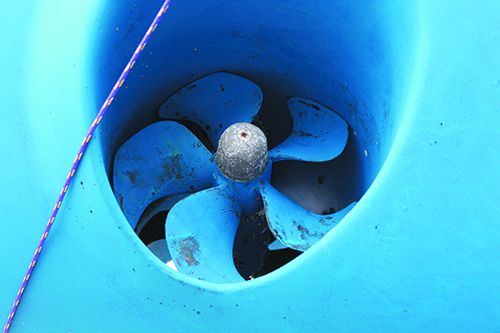

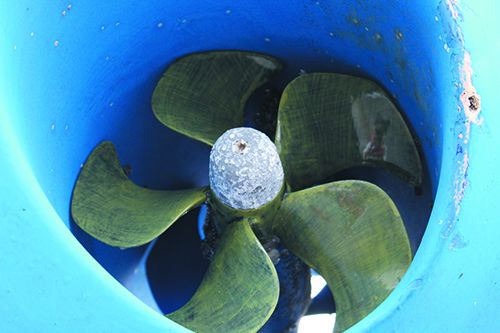

Haulout photos of the bow thruster aboard Mahina illustrate the
difference in performance of Prop Speed and Micron 77.

Coppercoat is a water-based epoxy hull coating into which 98 percent pure copper powder is mixed in. It claims to have the potential of dramatically cutting pollution relating to antifouling paint and reducing costs of annual bottom painting. It rated Poor in a 2011 PS test (https://bit.ly/3ak0hq3), and has not been tested since.

Can Antifouling Paint Be Eco-friendly?

HARD PAINTS at 20 MONTHS (FLORIDA)

NAME MAKERPRICE/GALSPECIAL USES, COMMENTSBOOSTERCOPPER/ ZINC** LEACH RATE
Copper Pro SCX HardBlue Water215High copper, dual biocideNCN0.67No data
EP2000Epaint290Water-based, race paint, alum.-safe, photoactiveZnPNone---
SN-1Epaint275Freshwater release paint, fast finishDCOITNone---
ZO HPEpaint325Photo-active high performance racing paintZnP 4.8%None---
UltraInterlux190High copper, dual biocideNCN0.55Category 1
VC OffshoreInterlux260 High-performance racing paintNone0.41Category 3
TrinidadInterlux225High copperNone0.76Category 1
Trinidad SRInterlux250 High copper, dual biocidePTFE0.65Category 1
Woolsey DefensePettit95Standard hard, single season, high copperNone0.52No data
SharkskinSea Hawk150Budget priced, single seasonNone0.45Category 1
TropikoteSea Hawk250Multi-season, high copperNone0.76Category 3

If there is to be any motion in a green-paint direction, government policy will be the prime mover—but what policy will be most acceptable to the public remains unclear.

In 2005, the Port of San Diego, the U.S. Environmental Protection Agency, and the San Diego areas regional water-quality agencies pooled resources to research alternative antifouling paints.  The study concluded that there were indeed several effective low-copper alternatives to bottom paints, and in 2015 the state’s Department of Pesticide Regulations then categorized the paints by leach rates, with Category 1 being the lowest leach rate (see tables above and below).

Despite implementing new restrictions prohibiting cleaning of hulls with “soft” bottom paints, the port was still not on target for meeting the 76-percent reduction by 2022 mandated by San Diego’s regional water commissions. An amendment that would further restrict bottom cleaning is currently undergoing review, although the most recent hearing was postponed
(https://bit.ly/3alwbCB).

Meanwhile in Washington State, a phasing out of all copper-based paints for recreational vessels, which was delayed from 2017 to 2021, is likely to be delayed again. The state’s own study (https://bit.ly/2uQLpk4) suggested that the chemicals introduced to replace copper needed more study, particularly with regards to their impact on the salmon fishery.

As of the printing of this issue of PS, the Washington state legislature appeared to be on target to passing a bill that would push the phase-out to 2025.

Nearly all of the top paints from Practical Sailor’s 2016-2018 long-term test fell below the California Department of Pesticides
threshold for Category 1 paints, the lowest leach rate. The leach rates for each category are as follows:

Category I: Products with a leach rate below or equal to (≤) 9.5 μg/cm2/day
Category II: Products with a leach rate below or equal to (≤) 13.4 and above (>) 9.5 μg/cm2/day 2
Category III: Products with a leach rate above (>) 13.4 μg/cm /day

ABLATIVE PAINTS RATED FAIR OR BETTER 20 AT MONTHS (FLORIDA)

NAMEMAKERPRICESPECIAL USES, COMMENTSBIO-BOOSTERCOPPER/**ZINCCOPPER LEACH RATE
Gold Coast SPC AblativeBlue Water155High copper, for high-fouling watersZnP 3%0.39No Data
Copper Shield AblativeBlue Water120 High copper, high fouling watersZnP 3%0.45No Data
Shelter Island PlusBlue Water185 Solvent based, copper free , zinc boostedZnPZinc 25%---
ZOEpaint285Photoactive, alum. safe, harder finishZnP 4.8%None---
Total Boat Inflatable (new)Flexdel$50/qt.Flexible water-based for inflatable boatsZO 2.9%0.28No Data
Total Boat Krypton (new)Flexdel180 Copper-free, single-season, with Econea Econea 5.2 %ZnP 4%---
Micron CFInterlux220Multi-season, Copper-free EconeaEconea 3.9 %NCN 2%---
Micron 66Interlux280Self-polishing copolymer, not for fresh waterZnP 4.1%0.4Category 1
Micron CSC $Interlux205High-strength, low VOCNone0.37Category 1
HorizonsPettit170Ablative multi-seasonNone0.48Category 1
Hydrocoat EcoPettit225Water-based, copper-free with Econea Econea 6%Znp 4.8%Category 1
Ultima SR-60Pettit240 Multi-season, dual-biocideNCN 2%0.6No Data
Ultima SSAPettit130Single-season ablative paintNone0.38 Category 1
Woolsey Yacht ShieldPettit175Multi-season, dual biocide, high-copperNCN 2%0.4 Category 1
VividPettit240Bright colors, white ZnPZnP0.25Category 1
West Marine CPP*Pettit140 Uses composite copper technologyNone0.38Category 1
West Marine PCA Gold*Pettit210 Industry standard with biocideNCN 2%0.4Category 1
Biocop TFSea Hawk275Dual-biocide, multi-seasonZnP 4.5%0.38No Data
CukoteSea Hawk200High copperNone0.48Category 2
Smart SolutionSea Hawk190Metal-free, slick-film racing paintEconea 2.9%None---

Simultaneously at the show we met Quincey and Mitchell, a young couple who purchased a Peterson 44 that had 30,000 tropical miles on the Coppercoat underwater coating which had been originally applied professionally 12 years earlier in New Zealand. They showed us photos of their hull which they’d recently hauled, and told us that they were purchasing kits to recoat a couple of small areas that were starting to foul. They mentioned that as far as they knew, this was the first time in 12 years the Coppercote had been re-touched, other than scrubbing and pressure washing.

Bottom Paint Update
International Paint’s Micron 77 is sold only in New Zealand,
although it is comparable to Interlux Micron 66, sold in the U.S.

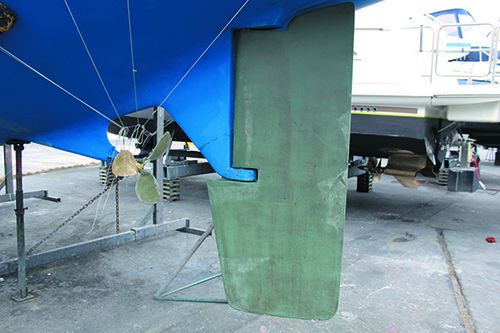

As I’m always searching for the best antifouling coating I asked BoatSpray if they could coat our rudder. Brian Kent, current manager of BoatSpray said that since the importer/distributor of Coppercoat had recently come to the yard to do several Coppercoat coatings, he’d prefer to have him apply it to ensure we’d be starting with the best possible coverage.

The US-importer stresses that it is critical to sand the water-based epoxy after it has cured, enabling the copper, not the epoxy to be in direct contact with the seawater.

Once the Coppercoat was applied by the distributer and cured, we sanded the starboard side fairly aggressively, in accordance with the attached sanding instructions, until it was nearly free of dimples. The port side was sanded lightly.

Our results after 10,000 miles and 30 weeks was that a substantial amount of slime would occur on the rudder. The port side fared well, but by midseason the starboard side had numerous barnacles adhering to it.

Without a doubt, the Coppercoat coated rudder required more frequent sponging or scrubbing than the Micron 77 coated hull. PS contributors Patrick and Rebecca Childress noted that the guidelines for application were hard to match, and this may have impacted performance (see https://bit.ly/3agsuOo). In our case, the starboard side was sanded very aggressively to match the photographs indicated in the US distributors guidelines. The cleaner, port side was not sanded as aggressively.

<stro

As we’re now recoating the starboard side of the rudder I’m curious to see how many years it would take for the cost of Coppercoat to beat the cost of Micron.

Amanda and John Neal spend seven months at sea sailing 10,000 miles a year while leading sailing training expeditions. The have more than 750,000 sea miles combined experience.
