Porthole Screen Project

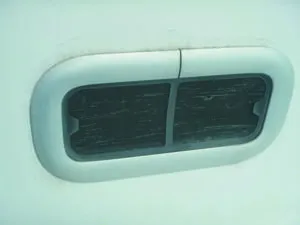

My porthole screens were starting to deteriorate after 10 years. The old screens were a fiberglass mesh. I looked into replacements, but could not be sure of pothole manufacturer or their exact size. What I did find seemed to be quite expensive at $40 to $50 each.

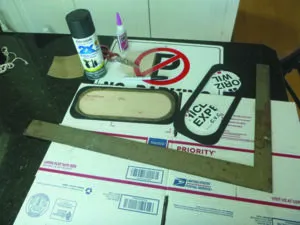

I decided to use bronze window screen as a replacement. This costs about $3 per square foot, purchased at a hardware store. I used plastic sign material for the screen frame. This costs about $6 for the heavier “No Parking” sign (18” x 24”).

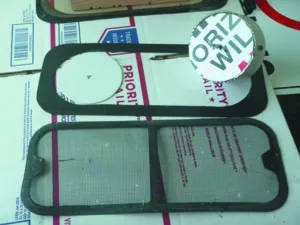

- Initially, I cut a dummy frame, using the outside of the old screen as a pattern. It took a little trimming with scissors, but finally got the dimensions right and popped it into the porthole frame. I had cut a couple of 1-inch diameter holes in the plastic so I could handle the dummy from one side.

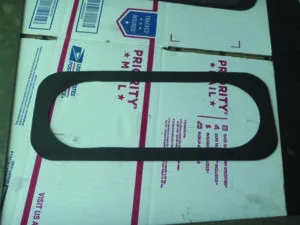

- Using the overall dimensions from the dummy, I cut four frames on a table saw. I layed out and cut the inside curved sections of the frame, using a 3-1/2” hole saw. I then cut between the edges of the holes to form the opening. I trimmed the outside corners to match the old.
- I cleaned things up with a Dremmel tool and spray-painted both sides with flat black, which was compatible with plastic.
- I cut the bronze screen with scissors to fit the frame, backing it off about 3/8-inch from edge of the frame.

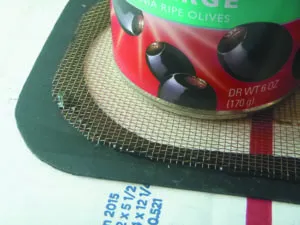

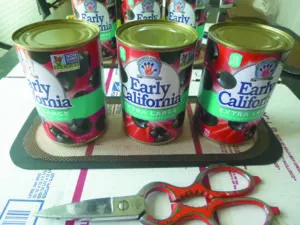

- I weighed the screen down with cans of olives (soup will also work), and glued the perimeter of the screen to the frame with a good quality Super Glue.
- I made the edges of the new frames wider than the old frames since I eliminated the frame’s “center post.” The new screens popped right in with the glued side of the frame on the inside. To remove a screen, it may be helpful to have someone push the frame from the inside.
The new screens should last for years.
David Bogdanoff
Beauty 27
San Francisco
